The Grandfather-Father-Son (GFS) policy features custom purge delays for some full backups to comply with archive storage requirements and optimize storage costs. Along with regular , GFS retention policy keeps balance between backup data availability and storage expenses.
There are three different backup keeping periods in GFS policy:
Yearly (grandfather)
Monthly (father)
Weekly backup (son)
According to GFS policy settings, some full restore points are subject to purge delay which is different from the regular retention policy. Purge delay for full restore points selected according to GFS retention policy can include GFS delay and regular retention depending on the GFS settings. For better comprehension, view the diagrams below.
For the rest of the full backups excluding the current generation, the purge delay is determined by the regular retention policy settings.

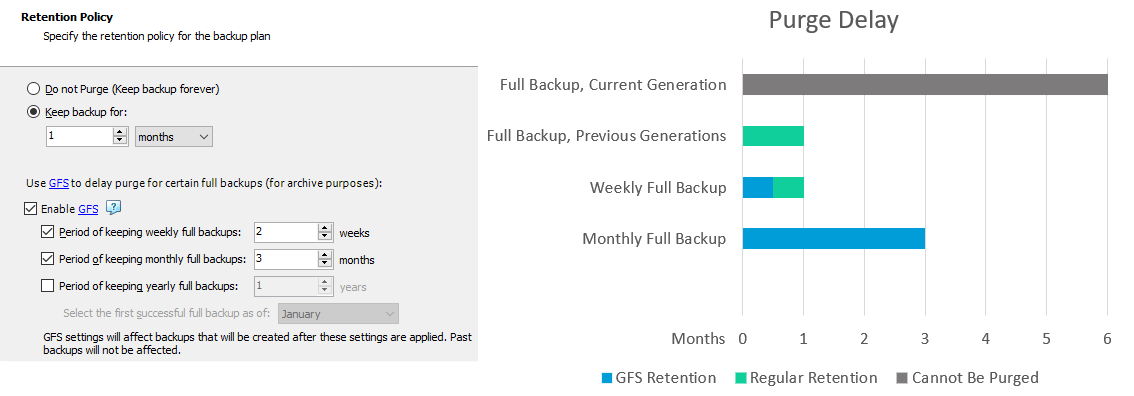

Scheme 1

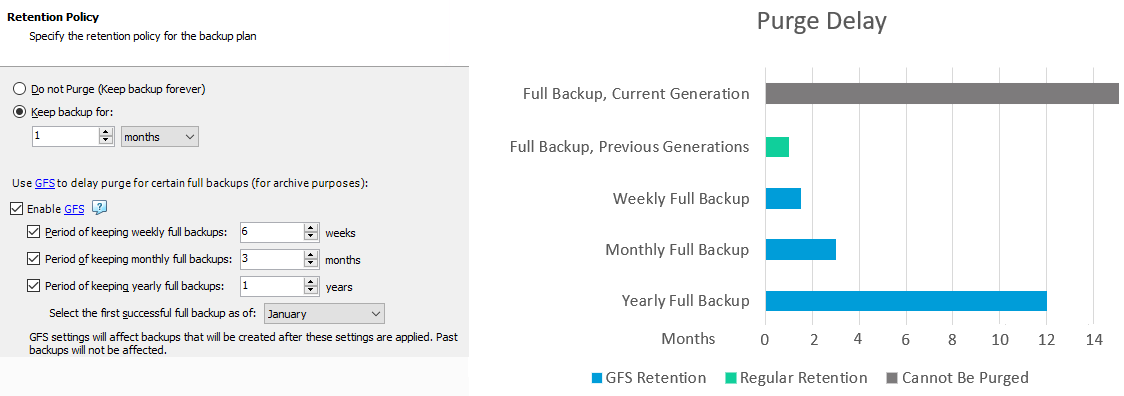

Scheme 2
The GFS weekly, monthly and yearly periods are selected automatically according to the specified GFS settings. You can configure the custom purge delays for weekly, monthly, and yearly full backups marked as GFS restore points. Weekly backup is selected automatically and is retained on a weekly basis, monthly backup is selected automatically and is retained on a monthly basis, and yearly backup is retained annually.
The GFS retention policy is supported for the following backup types:
File backup
Image-based backup
VMware backup
Hyper-V backup
To apply the GFS policy, a full backup dataset is required. These backups must be completed without errors and warnings. If errors or warnings occur within backup, in most cases you are provided with solutions to resolve them.
At the end of backup plan execution, if a backup procedure is completed successfully and GFS policy is enabled, the GFS search mechanism checks if any GFS keeping periods can be assigned to the generation of this backup plan.
After the GFS keeping period is assigned, it remains unchanged until the end of this keeping period. This means that despite you change your GFS settings later, the keeping period will not change.

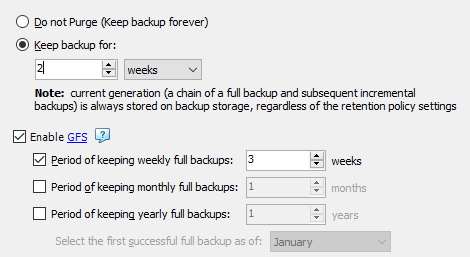

For example, if the following retention settings are set and the weekly GFS keeping period is enabled:
The search for weekly backup was started on Sunday, March 21, 2021, but for some reason, the first successful backup was completed on Friday:

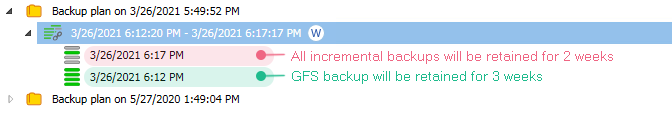

This will be marked as GFS weekly backup.
This backup will be kept until April 16, 2021, regardless of the GFS policy be disabled later or be changed.
Subsequent incremental backups made by this backup plan will be kept according to the specified general retention policy:
GFS keeping period assignment engine runs at the end of any backup plan for backups that match all criteria (successful backup with full backup dataset).
The GFS keeping assignment engine searches for successful restore points according to the rules listed below:
Weekly backup is searched and assigned as of Sunday. In case monthly or yearly backup is already marked on a current week, a weekly keeping period will be assigned on the next week
Monthly backup is searched as of the first day of the month. In case no yearly backup is marked for this month. If a weekly backup is already marked for the current week, monthly backup is searched as of the next Sunday. If a yearly backup is marked for this month, monthly backup is searched as of the next month
Yearly backup is searched is as of the first day of the month specified in GFS settings. If there are no successful backups in the specified month, then the first successful backup in the next month will be marked as yearly for this year.
Once a GFS keeping period is assigned, it is never changed.
A weekly restore point is marked once a week as of Sunday.
A monthly restore point is marked once a month.
The first successful restore point that complies with the GFS policy will be marked as monthly.
The monthly restore point selection can be postponed to the first Sunday if the weekly restore point is already selected for the first week of the month. In case there are no restore points that comply with GFS policy criteria in January, then no monthly restore points for January will be assigned.
A monthly restore point is kept in the backup storage for a specified number of months. GFS retention period for this restore point remains the same even if GFS policy is disabled or changed.
To avoid assigning yearly full backup in a row, it is not recommended to set yearly GFS to the month following the one in which the yearly GFS was enabled.
The first successful restore point that complies with the GFS policy and with user settings (you can select the month the yearly keeping period will be selected as of) is selected as yearly.
The yearly restore point selection can be postponed to the first Sunday if the weekly restore point is already selected for the first week of the year.
A yearly restore point is kept on backup storage for a specified number of years. GFS retention period for this restore point remains the same even if GFS policy is disabled or changed.
If yearly and monthly GFS keeping periods are enabled, and no month for yearly keeping period is not selected in , then the first successful restore point of the first week of the year will be marked as a yearly backup (in case of this week contains no other restore points marked for GFS policy, this may occur if a year begins in the middle of the week). In case for the selected week a GFS restore point already exists, the first yearly backup is searched as of next Sunday. In case the yearly restore point is marked, the search for the first monthly successful restore point is started as of from the following Sunday the yearly backup is selected.
If yearly, monthly, and weekly GFS keeping periods are enabled and a specific month for yearly backup is not set in , then the first successful restore point of the first week of the year will be marked as a yearly backup (in case of this week has no other backups marked for GFS policy, this may occur if a year begins in the middle of the week). In case for the selected week, a GFS restore point already exists, then the first yearly backup is searched as of next Sunday. In case the yearly backup is marked, the search for the first monthly backup will be started on the subsequent week as of Sunday. Finally, the first weekly backup is searched as of Sunday after the yearly and monthly backups are selected.
Refer to the for more information.
A restore point with a weekly keeping period is kept in backup storage for a number of weeks. GFS retention period for this restore point remains the same even if GFS policy is disabled or changed. In case there are no successful restore points that comply with GFS policy criteria within a week, no weekly restore points will be marked with a weekly keeping period.
Yearly restore point is selected once a year starting from the month specified in the (from January to December).
